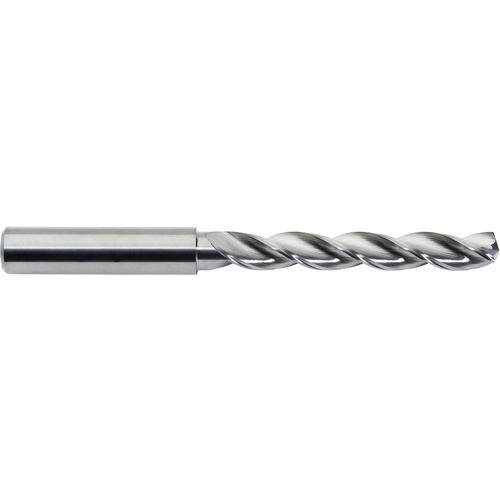

25/64″ Dia. × 25/64″ Shank × 2-7/8″ Flute Length × 4-1/2″ OAL, 5xD, 150°, Uncoated, 3 Flute, External Coolant, Round Solid Carbide Drill
Alternate Manufacture # 22921
| Drill Bit Size / Cutting Diameter (DC) | 25/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 25/64″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.3906″ | Point Shape | Point |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 229 |
| Connection Diameter Machine Side (DCONMS) | 25/64″ | Usable Length (LU) | 2-7/8″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 2-7/8″ |
| Point Angle (SIG) | 150 Degrees | Overall Length (OAL) | 4-1/2″ |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Shank Type | Round |
Product Features
| Family Description | Alternate Manufacture # 22921 | Country of Origin | UNITED STATES |
| Remarks | •Solid Carbide 3 Flute High Performance Drills •Solid Carbide (K20–40) 10% Micrograin Carbide 150° Point 30° Helix Series 229 America's Best • Recommended for increased speeds and feeds when drilling aluminum, cast iron and other easy to machine materials. • Greater hole dimensional accuracy at higher production rates • Reduces drill deflection compared to HSS, Cobalt and othercarbide drills • 150° Point |
Shipping Info
Package Length
4.50000
Package Width
.50000
Package Height
.50000
Package Weight
.236
