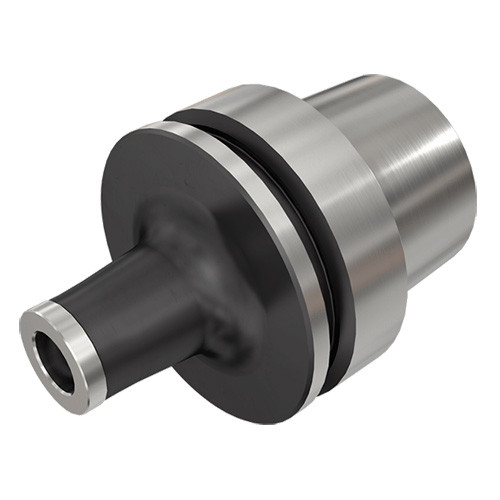

HSKE50ODP10X109

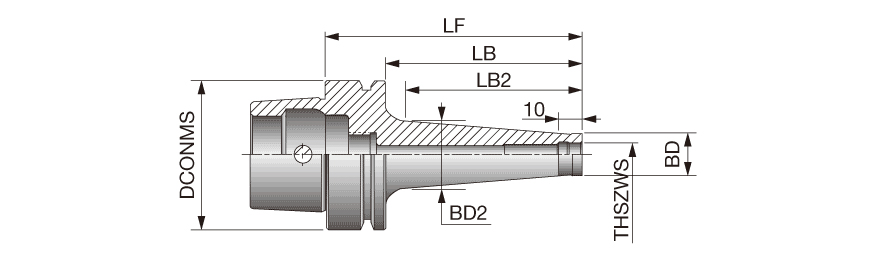

| Shank Size (SS) | 50. | Tool Type | HSK |
| Body Length (LB) | 3.268″ | Nose Diameter | 5.276″ |
| Body Diameter (BD) | 0.709″ | Overall Length (OAL) | 4.291″ |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Application | | Face contact interface | | Body Material | Steel |
| Body Length_2 (LB_2) | 2.953″ |
Product Features
| Family Description | TungFlex modular tooling system with HSK-E shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
