C6EM16X65

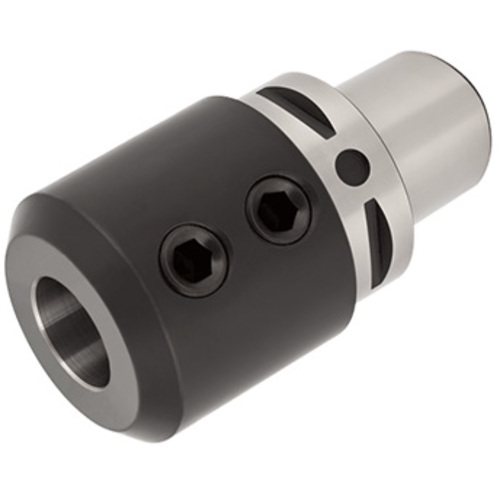

TungCap weldon endmill holders (DIN1835 Form B)

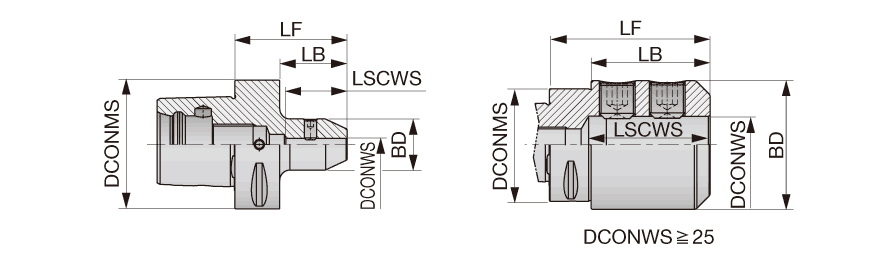

| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Shank Size (SS) | 63. |
| Body Diameter (BD) | 48 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Overall Length (OAL) | 65 mm | Body Length (LB) | 43 mm |
| Application | | Face contact interface | | Body Material | Steel |
Product Features
| Family Description | TungCap weldon endmill holders (DIN1835 Form B) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
0.000
