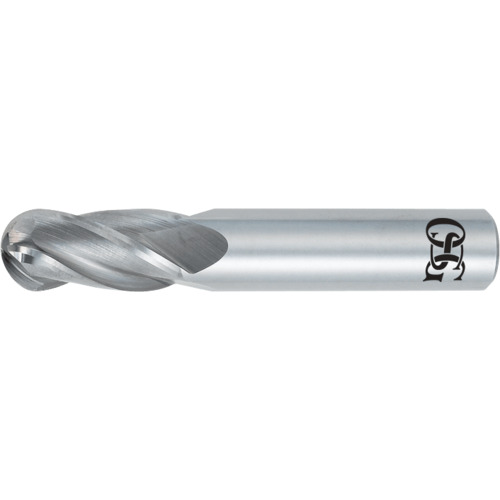

1/8″ Dia. × 1/8″ Shank × 1/2″ DOC × 1-1/2″ OAL, Carbide Bright, 4 Flute, Round, Ballnose End Mill
| Cutting Diameter (DC) | 1/8″ | Corner Radius (RE) | 1/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Tool Type | Single-End |
| Depth of Cut Maximum (APMX) | 1/2″ | Length Group | Standard |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Style | Ball |
| Coating | Uncoated | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 404BN |
| Usable Length (LU) | 1/2″ |
Product Features
| Remarks | •Micrograin Carbide End Mill •Regular Length •Ball End •4 Flute | Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
2.65000
Package Width
.45000
Package Height
.40000
Package Weight
0.065
