| Thread Diameter Size (TDZ) | #12 | Thread Tolerance Class (TCTR) | H3 |

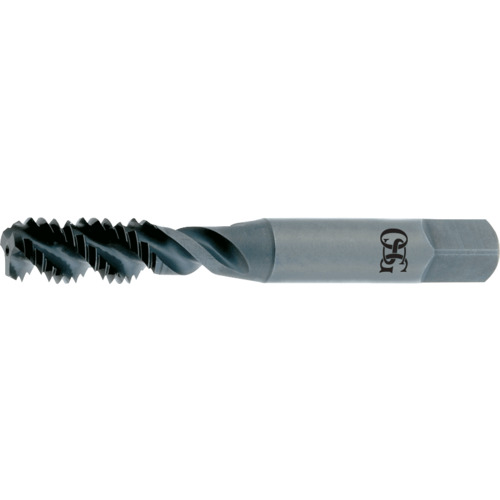

| Threads per Inch (TPI) | 24 | Tool Type | Spiral Flute Tap |
| Thread Standard | NC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-3/8″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 15/16″ | Flute Type | Spiral |
| Usable Length (LU) | 0.937″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.22″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS | Series/List # | 107 |
Product Features
| Remarks | •OSG List No. 107. | Country of Origin | JP |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.025
