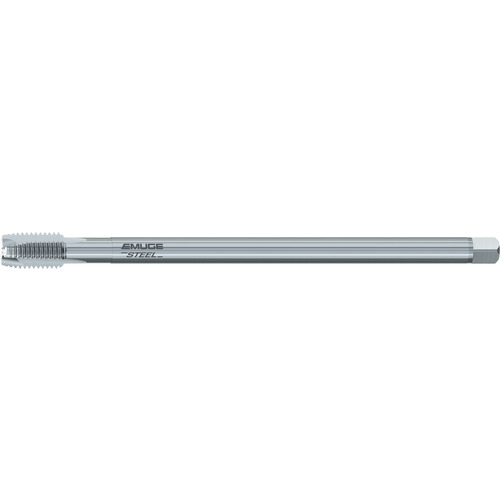

Extension Tap; M16 x2 mm × 224 mm ; HSSE ; Metric ; 6H
| Thread Diameter Size (TDZ) | M16 | Tool Type | Rekord B |
| Thread Pitch (TP) | 2 mm | Standard | DIN |
| Thread Standard | Metric | Chamfer | 4P-5P |
| Overall Length (OAL) | 224 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | External |
| Applicable Material | | Stainless Steel | | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE | Flute Type | Spiral |
| Thread Tolerance Class (TCTR) | 6H | Series/List # | C2208900 |
Product Features
| Remarks | • Rekord B-LS design is typically for through hole applications in long-chipping materials. • Longer tool life and more consistent thread quality. • Spiral point creates tight curled chips that are pushed ahead of the tap. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
